Cutaway London: A Look Inside the Most Famous Landmarks

London’s top buildings are instantly recognisable from the outside – but the postcard image hides the true complexity of these fabulous structures.

The UK capital is a working city first of all. While they may look fancy from a selfie-stick, buildings such as the Gherkin or Big Ben have contemporary functions to fulfil. And the clockwork that makes them run is just as exciting as their silhouette on the skyline.

Most people don’t get a chance to see behind the scenes, so we decided to open up seven of London’s top landmarks with a series of cross-sections showing just what’s going on beneath their famous fronts.

1. The Gherkin – 30 St Mary Axe, London EC3A 8EP

The enormous glass pickle at the heart of London’s financial district is mostly made up of offices working in the insurance sector.

While it may look smooth from the outside, there’s plenty at work under the skin. Norman Foster’s design is highly energy efficient. Exposed shafts under each floor expel hot air from the building in the summer, and utilise the sun’s heat and light in the winter, so that the building uses half the energy of similarly-sized buildings.

There are restaurant/dining rooms on the top levels, and a club room at the peak which offer 360-degree views over the city. Believe it or not, the dome’s arch is the only curved piece of glass on the building’s exterior.

The Gherkin - Cutaway View

2. The Barbican – Silk St, London EC2Y 8DS

The Barbican is a cutting-edge arts venue at the heart of an epic brutalist estate, which required over 200,000m² of concrete for its ‘tooled’ finish alone.

The cultural centre is nestled twenty metres below ground level in order to comply with local building restrictions. It’s described as ‘the hull of a large ship in which much is contained below the water,’.

If it’s hard to get an overview of such an enormous complex from the outside, from the inside visitors experience a kind of puzzle, with levels at multiple heights interlocking via semi-exposed walkways and stairwells.

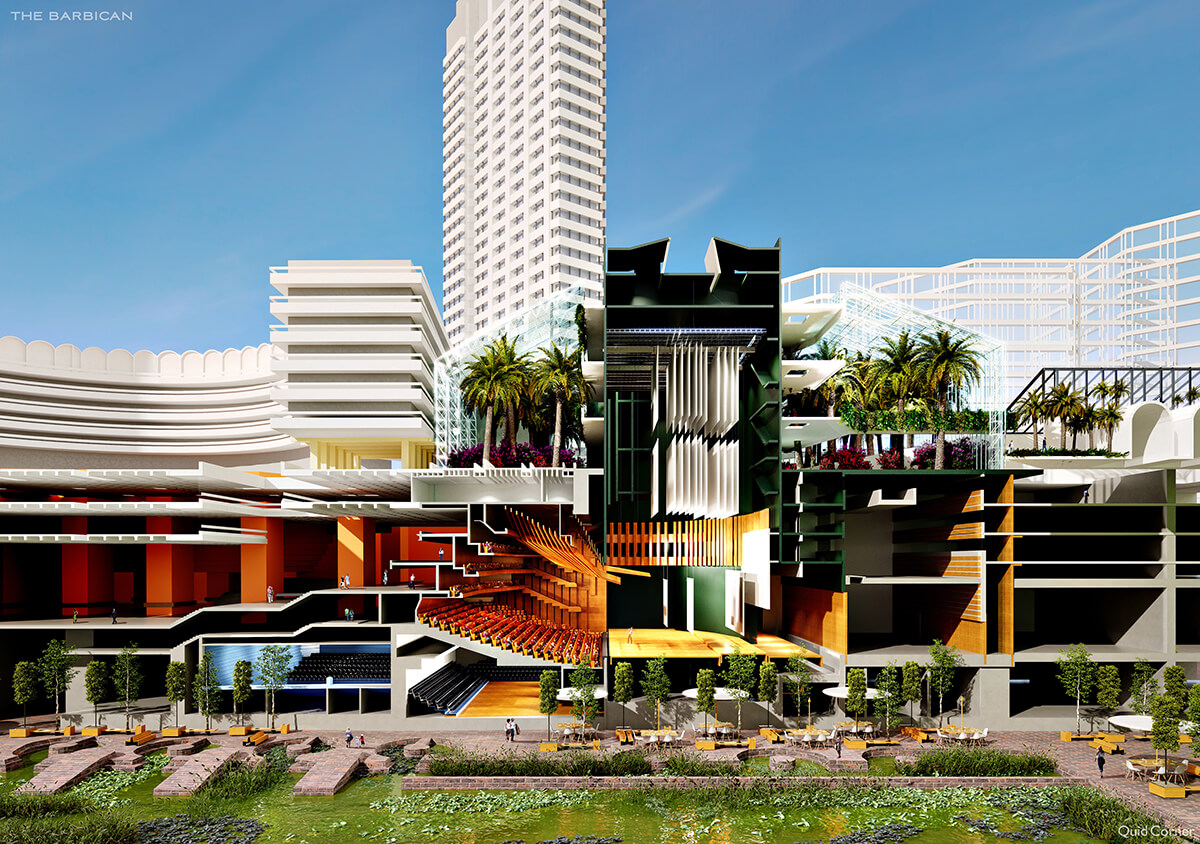

The Barbican - Cutaway View

3. Elizabeth Tower – Westminster, London SW1A 0AA

Although often referred to as ‘Big Ben’ – this famous landmark is actually called Elizabeth Tower and ‘Big Ben’ is the 15-ton bell that sits inside the top of the clock tower.

In addition to the literal clockwork that keeps the building operational, the tower boasts a prison room specifically intended for naughty politicians from the Houses of Parliament next door; its last involuntary guest was MP Charles Bradlaugh in 1880, but stay tuned for updates.

Other ‘treats’ across the tower’s eleven floors include a mini-museum, a storeroom, and 334 steps (plus another 59 to the Ayrton Light which comes on when parliament is in session). In fact, there’s no elevator – which is one reason this cross-section might be the closest you get to a look around.

Big Ben - Cutaway View

4. The O2 Arena – Peninsula Square, London SE10 0DX

The former Millennium Dome is the planet’s largest (supported) dome, and has risen to become the busiest music arena in the world.

Originally designed for a year-long Festival of Britain-style series of exhibitions and experiences, the structure was repurposed into a stadium over a four-year period in the mid-noughties.

Developers capitalised on a complexity of structure that belies the dome’s superficial simplicity. Rainwater that runs off the curved roof is collected, treated, and pumped back in to flush the arena’s toilets. The super-thin glass fibre fabric is pinned to supporting cables by over 20,000 clamps: the 100-metre masts that hold it up are what disqualify the structure from being a true dome in architectural terms.

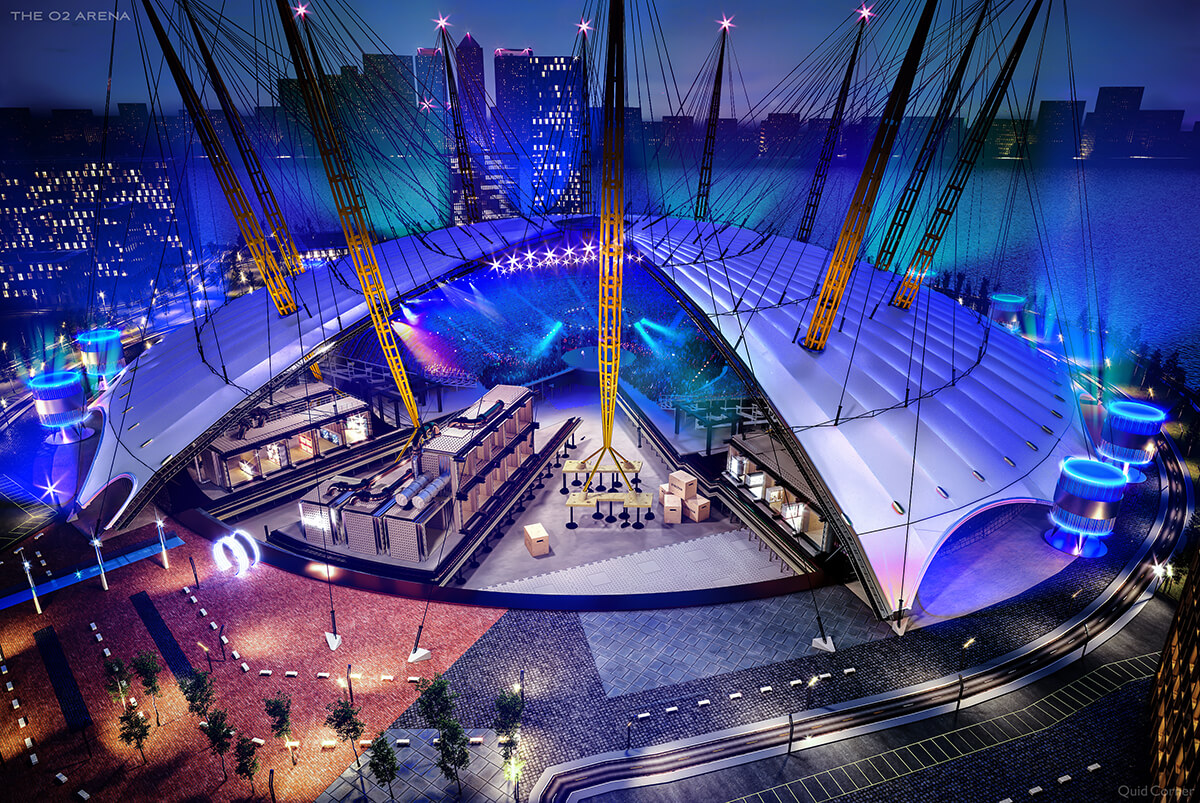

O2 - Cutaway View

5. Kings Cross Underground – Euston Rd, Kings Cross, London N1 9AL

No type of structure quite says “hidden complexity” like an underground rail network. And few hubs are so busy and expansive as Kings Cross.

When the original station opened in 1851, its twin 800ft train sheds were praised for their simplicity. But high demand has required major overhauls over recent decades. The new steel and glass Western Concourse was part of a £500m redevelopment ahead of the 2012 Olympics.

Seen from inside, its epic roof “rises up a great steel stalk in the centre and then spreads into a tree-like canopy of intersecting branches, before descending into a ring of supports at the circumference. In so doing, it avoids the need to drop columns into the ticket hall of the underground station underneath the main space,” as described by The Observer’s architecture critic Rowan Moore.

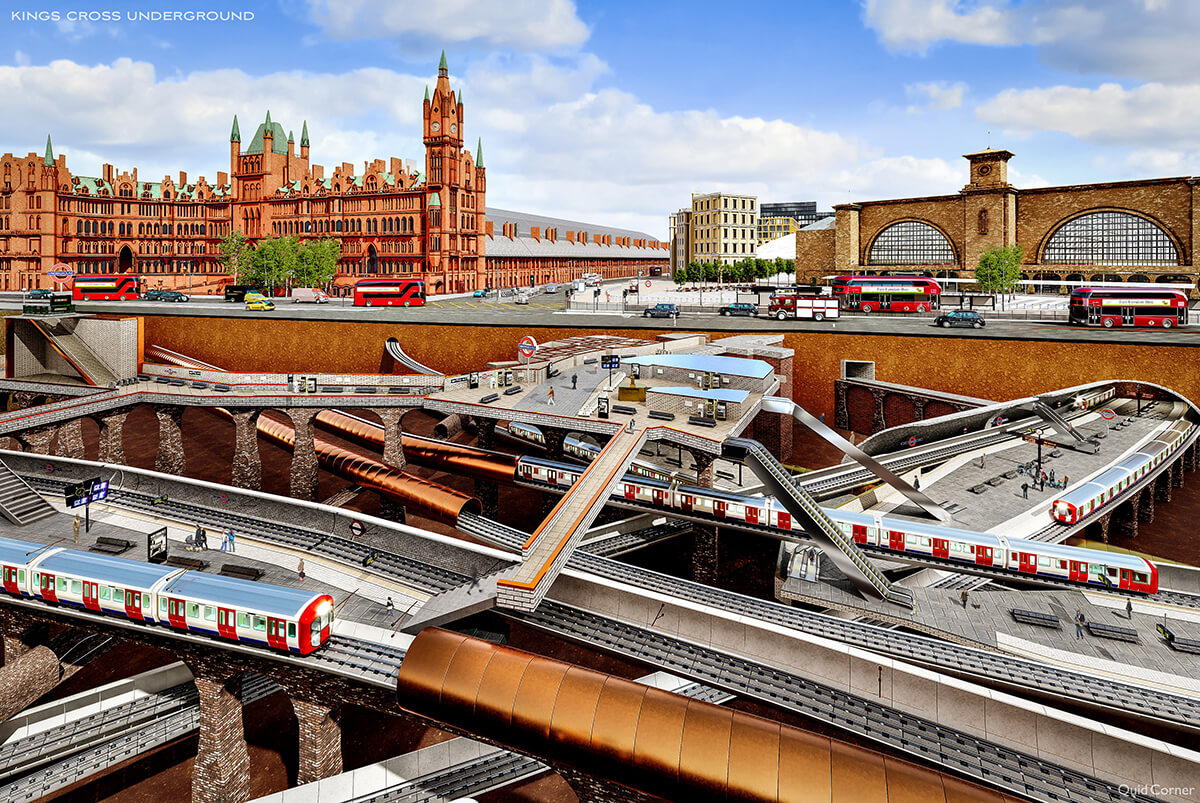

Kings Cross - Cutaway View

6. Royal Opera House – Bow St, London WC2E 9DD

 The present Royal Opera House is the third to have occupied the plot: the previous two were lost to fire, with the latest iteration opening in May 1858.

However, the building received a major £178m revamp in the 1990s. The Floral Hall, an iron and glass structure designed by E.M. Barry as both a flower market and ballroom, was transformed from its distinctly fading glory into a new social space with bars and eateries.

A peek behind the Bow Street grand classical portico is a true glimpse behind the scenes, revealing just how the action comes together on stage.

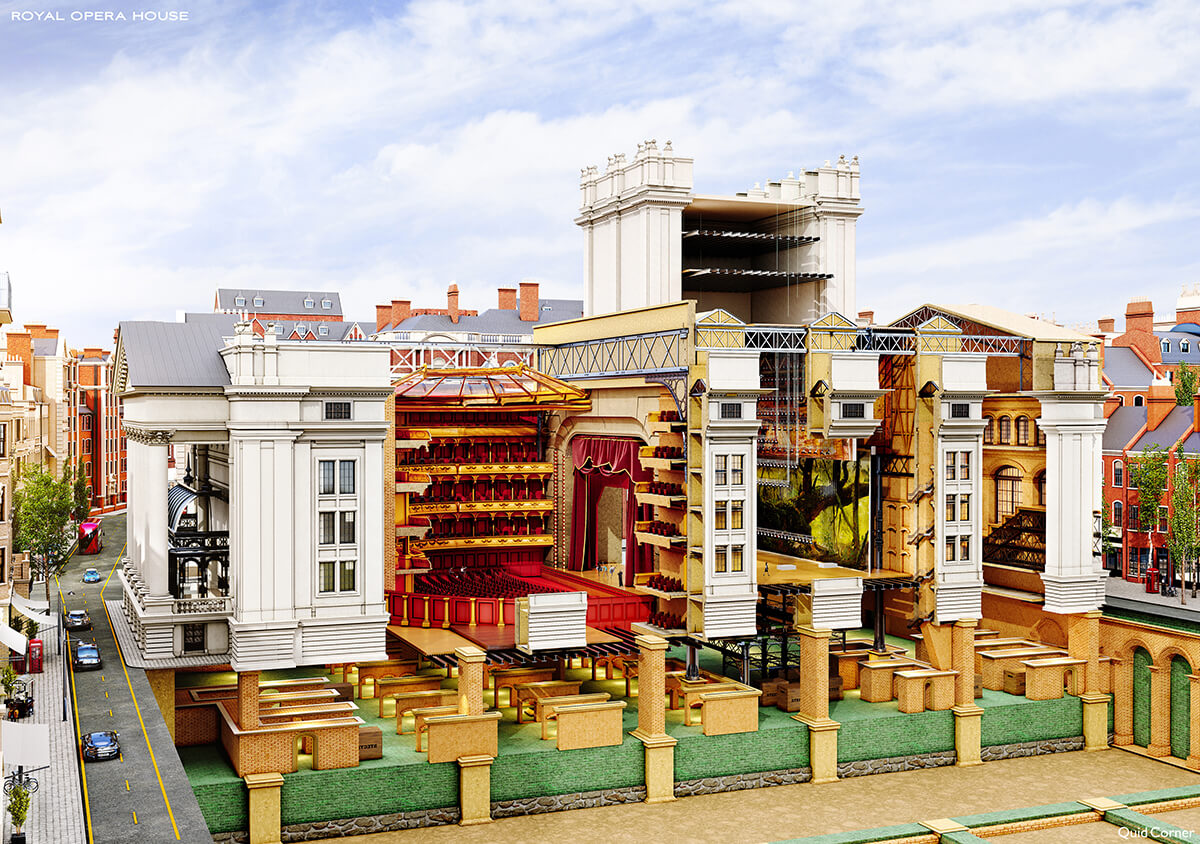

Royal Opera House - Cutaway View

7. 10 Downing St – Downing St, Westminster, London SW1A 2AA

The headquarters of the UK government and official residence of the Prime Minister (or technically, of the First Lord of the Treasury, a role that is usually held by the PM), Number 10 is actually comprised of three separate 17th century buildings which have since been connected.

“The scene of hundreds of years of top-level decision-making, it is also the product of hundreds of years of incremental adaptations, repairs and restorations,” writes one of the building’s biographers, “…much about No. 10 is the product of historical chance, rather than design.”

The cutaway shows a suite of drawing rooms on the first floor, with offices and the PM’s meeting room/den (centre) below. All in all, the building contains around 100 rooms – hardly the modest terraced house it appears from the front!

London’s iconic buildings give the appearance of simplicity, but most are sustained by a complex web of architectural and cultural factors. A glimpse beneath the surface gives a much clearer idea of just what goes into the planning and maintenance of such stunning structures.

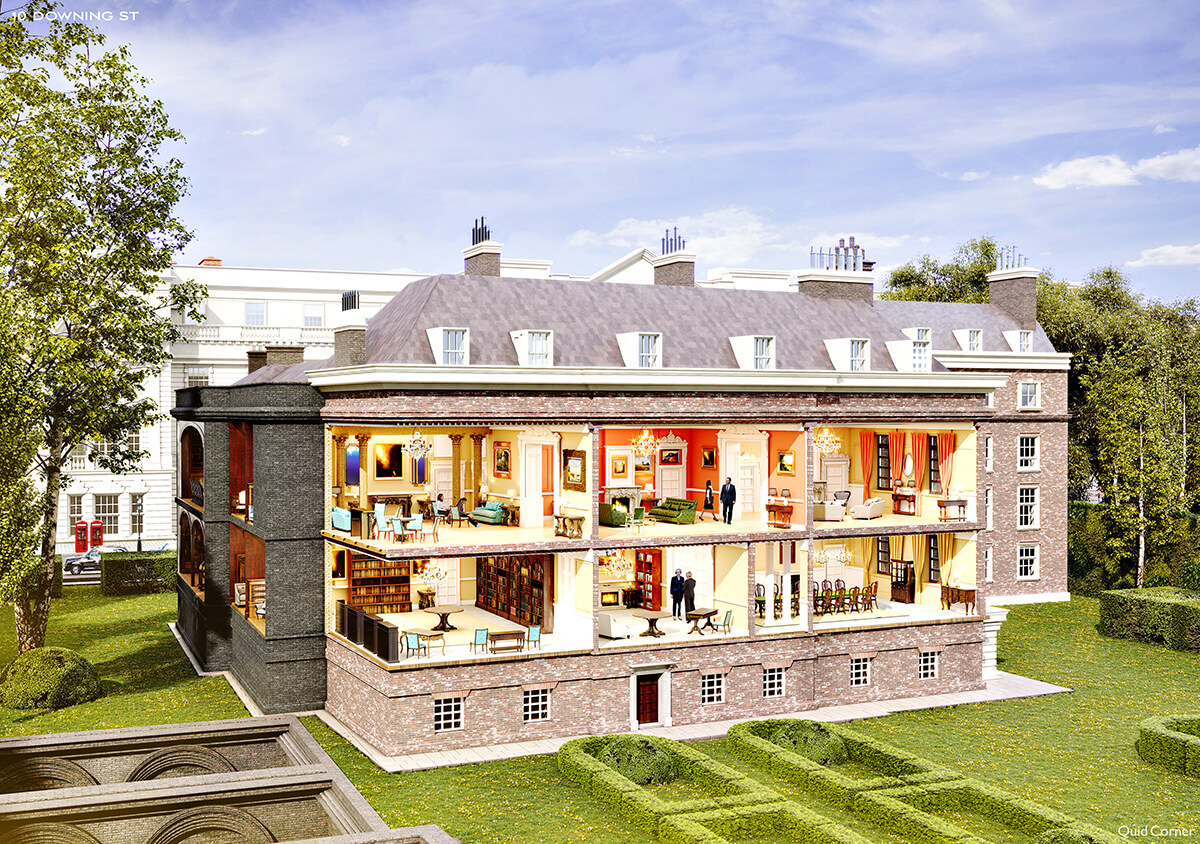

10 Downing Street - Cutaway View
